QRP attenuator 50W / 5 W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
I operate both QRO and QRP power
levels. My QRO power is 1kW and on QRP I run 5W. |
|
|
As I have separate call signs for
QRO and QRP, OH1TV and OH1WX, I often work DX-speditions |
|
|
with both calls. Threrefore I need
to adjust power levels quickly and often. But it is time consuming. |
|
|
I have also tried separate rigs for
both powers. It is not convenient either. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
So I decided to build this QRP
attenuator. My linear needs 50W drive,
that is, the exciter is adjusted to 50W. |
|
By attenuating that 50W by 10 dB I
get 5W, by turning one switch. |
|
|
|
|
|
On QRO I can have the full kW in the
other position of the switch |
|
|
|
|
|
This attenuator acts like a negative
Linear Amplifier. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

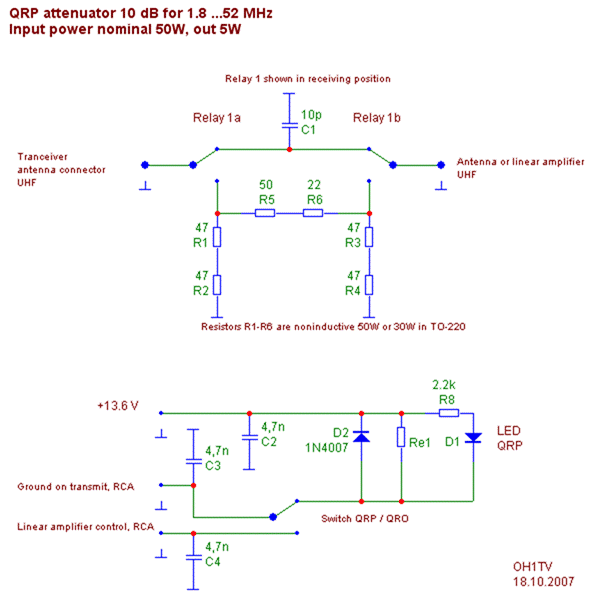

The schematics is very simple as you
can see. I built it from the parts I had in hand. |
|
|
|
I had to connect two resistors in
series to get the needed resistance values. |
|
|
|
|
The 10 pF capacitor was necessary in
order to improve impedance matching on the high end. |
|
|
|
|
|
|
|
|
|
|
|
|
|
The measured attenuation was 10.2 dB
+/- 0.2dB over 1.8…52 MHz band. |
|
|
|
|
Return loss is better than 20 dB on
50 ohm.. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The LED lights during QRP
transmission. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OH1TV |
|
|
|
|
|
|
|
|
|
|
19.10.2007 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
