❶ Calculate values for L-match, increase resistance, low-pass type
The load can be an antenna, filter or other equipment connected to a transmission line.
Both decimal point and comma are ok.
Frequency MHz Target resistance ohm
Load serial resistance and reactance j ohm
Results:
Total serial reactance = ;
Total serial inductance L1 =
Parallel capacitance C1 =
If the load includes serial reactance, the L-match serial reactance becomes =
That is: inductance = :
or capacitance = :
This together with the load reactance now make L1.
NaN means this model cannot do the job.

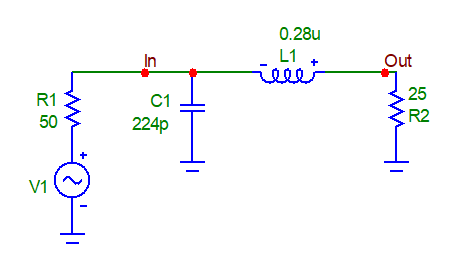

Example: low-pass, 14.2MHz, 25 to 50ohm
