❸ Calculate values for L-match, decrease resistance, low-pass type

The load can be an antenna, filter or other equipment connected to a transmission line.

Both decimal point and comma are ok.

Frequency MHz       Target resistance ohm

Load serial resistance and reactance j ohm

      Clear

Results for the low pass version:

Serial inductance L1 =   and   parallel capacitance C1 =

If the load includes serial reactance, it shall be eliminated with opposite reactance X2.
That is:   inductance L2 = :     or     capacitance C2 = :

NaN means this model cannot do the job.

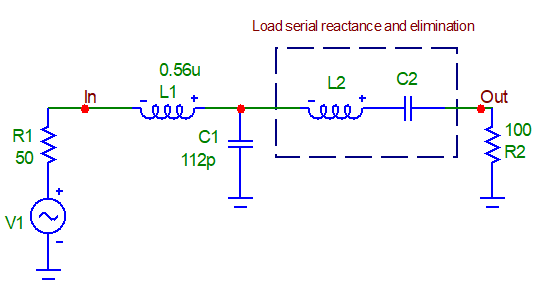

Example: low-pass,     14.2MHz, 100 to 50ohm

Home My projects L-match home ❶ increase, LP ❷ increase, HP ❹ decrease, HP

Pekka Ketonen 16.8.2022
