❷ Calculate values for L-match, increase resistance, high-pass type
The load can be an antenna, filter or other equipment connected to a transmission line.
Both decimal point and comma are ok.
Frequency MHz Target resistance ohm
Load serial resistance + reactance j ohm
Results:
Total serial reactance = ;
Total serial capacitance C1 =
Parallel inductance L1 =
If the load includes serial reactance, the L-match serial reactance becomes = .
That is: inductance = :
or capacitance = : .
This together with the load reactance make C1.
NaN means this model cannot do the job.

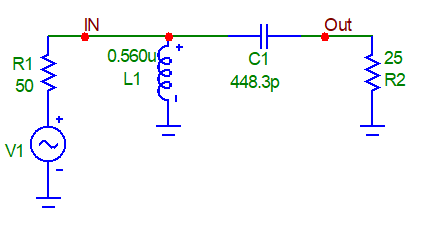

Example: high-pass, 14.2MHz, 25 to 50ohm
