❹ Calculate values for L-match, decrease resistance, high-pass type

The load can be an antenna, filter or other equipment connected to a transmission line.

Both decimal point and comma are ok.

Frequency MHz       Target resistance ohm

Load serial resistance and reactance j ohm

Calculate       Clear

Results:

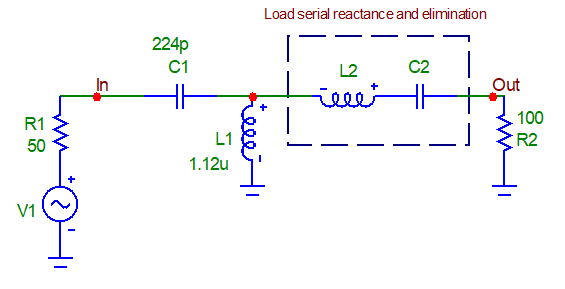

Serial capacitance C1 =   and   parallel inductance L1 =

If the load includes serial reactance, it shall be eliminated with opposite reactance X2.
That is:   inductance L2 = :     or     capacitance C2 = :

NaN means this model cannot do the job.

Example: high-pass,     14.2MHz, 100 to 50ohm
